Technical Features
  • Average output 700-900 cases/hour.
  • Adjustments by graduated handwheels.
  • Installed power 3.5KW
  • Vacuum pump 12 m2/Hour
Box sizes
  1. Min 220mm Max 500mm
  2. Min 150mm Max 400mm
  3. Min 150mm Max 450mm
  4. Dati Tecnici
Suitable for:
  • Food and beverage sector
  • Pharmaceutical sector
  • Medical and sanitary items
  • Ironmongery, metal parts
Contacts
forming machine

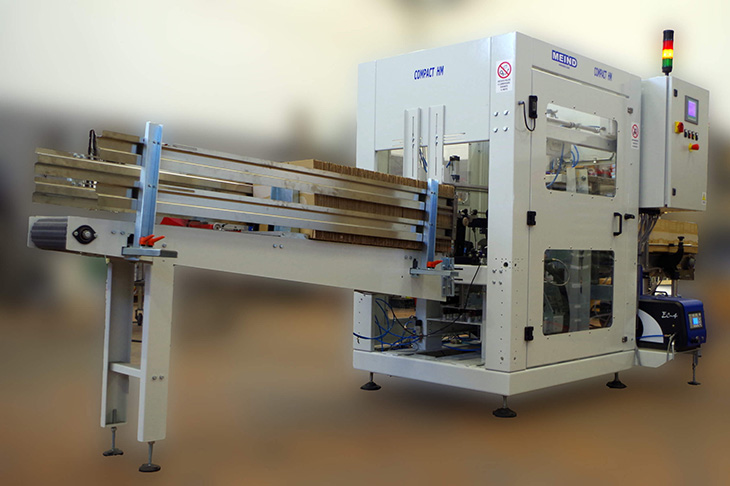

Forming Machine

Automatic American-type case forming machine mod. COMPACT/A9 with bottom sealing by adhesive tape (hot melt glue sealing version also available).

Completely automatic machine, controlled by PLC with problems indicator, Quick change over by means of graduated hand-wheels and quick extraction of the taping unit (for adhesive tape replacement).

The case is picked from the magazine and formed. Once its bottom has been closed, the case is transferred to the out-feed roll conveyor. Here two motorized side belt conveyors carry it out while its bottom gets sealed.

The case moves out duly formed and sealed, ready to be filled either manually or by the automatic case packer mod. SIRIO65.
